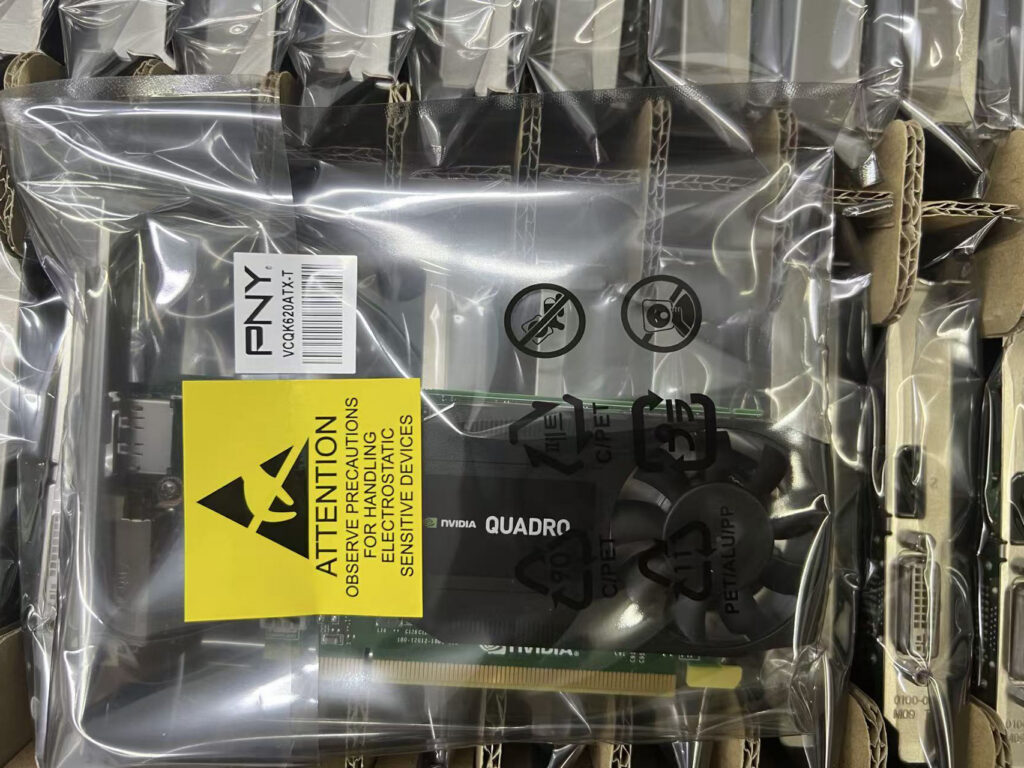

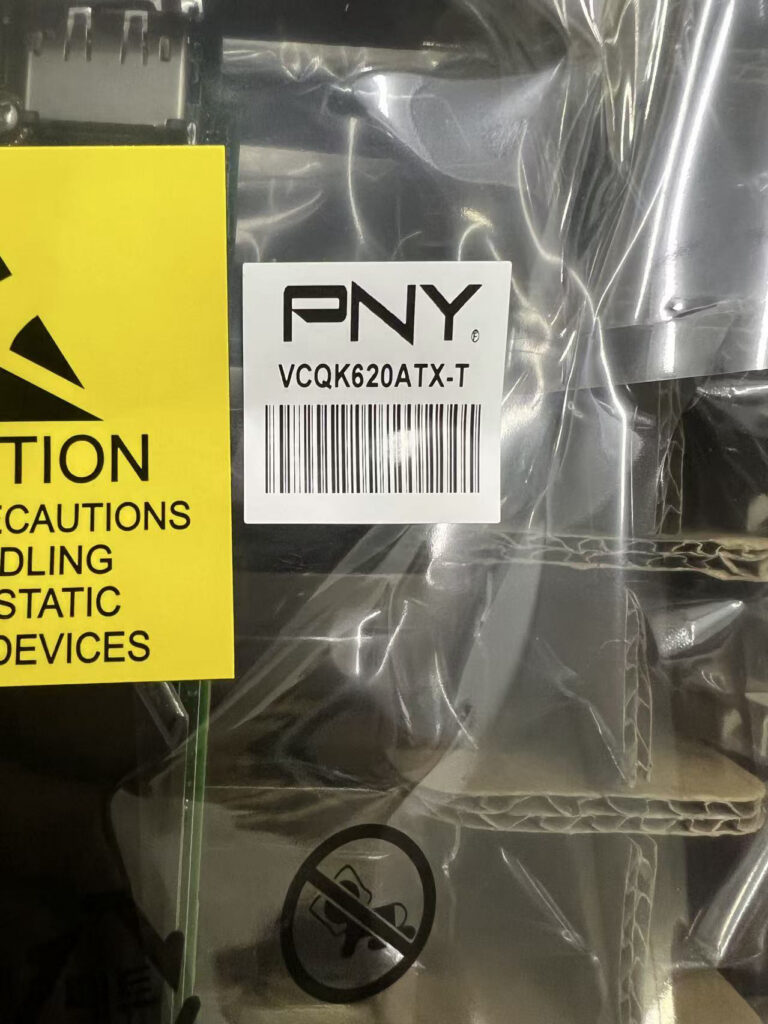

Model:VCQK620ATX-T
3D Graphics Architecture
- Scalable geometry architecture
- Hardware tessellation engine
- FXAA and TXAA full scene antialiasing
- Bindless Textures
- Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
- Up to 16K x 16K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per component floating point texture filtering and blending
- Up to 64X full scene antialiasing
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 encoder (requires application support)
- Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
- NVIDIA Quadro Boost automatically adjusts the GPU engine throughput to maximize application performance.
Parallel Computing Capabilities
- Streaming Multi-Processor Design (SM 5.0) delivers high performance and energy efficiency
- Support for all the latest CUDA 6 features, including Unified Memory, Dynamic Parallelism and Dedicated Shared Memory)
- Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python and Fortran
Advanced Display Features
- Simultaneously drive up to two displays when connected natively
- Support up to four displays when using DisplayPort 1.2 multi-streaming
- Dual DisplayPort 1.2 outputs including Multi-Stream and HBR2 support (capable of supporting resolutions such as 4096 x 2160)
- DisplayPort 1.2 (up to 4096 x 2160 at 60Hz and 2560 x 1600 at 120Hz)
- DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
- DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
- Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)
- DisplayPort 1.2, HDMI® 1.4, and HDCP support (HDMI® requires 3rd party adapter)
- Stereoscopic 3D display support including NVIDIA 3D Vision Pro and 3D Vision, 3D DLP, interleaved, and passive stereo
- OpenGL and Direct3D quad buffered stereo support
- Underscan/overscan compensation and hardware scaling
- Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools
DisplayPort and HDMI® Digital Audio
- Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176KHz, and 192 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
Please contact us for bulk orders.
